E-Moto Torp TC500 Controller SurRon / Talaria

E-Moto Torp TC500 Controller SurRon / Talaria

The only aftermarket controller pre-configured for the SurRon Light Bee/Segway X260/Talaria e-bikes. Quick and easy installation and intuitive setup through the mobile App.

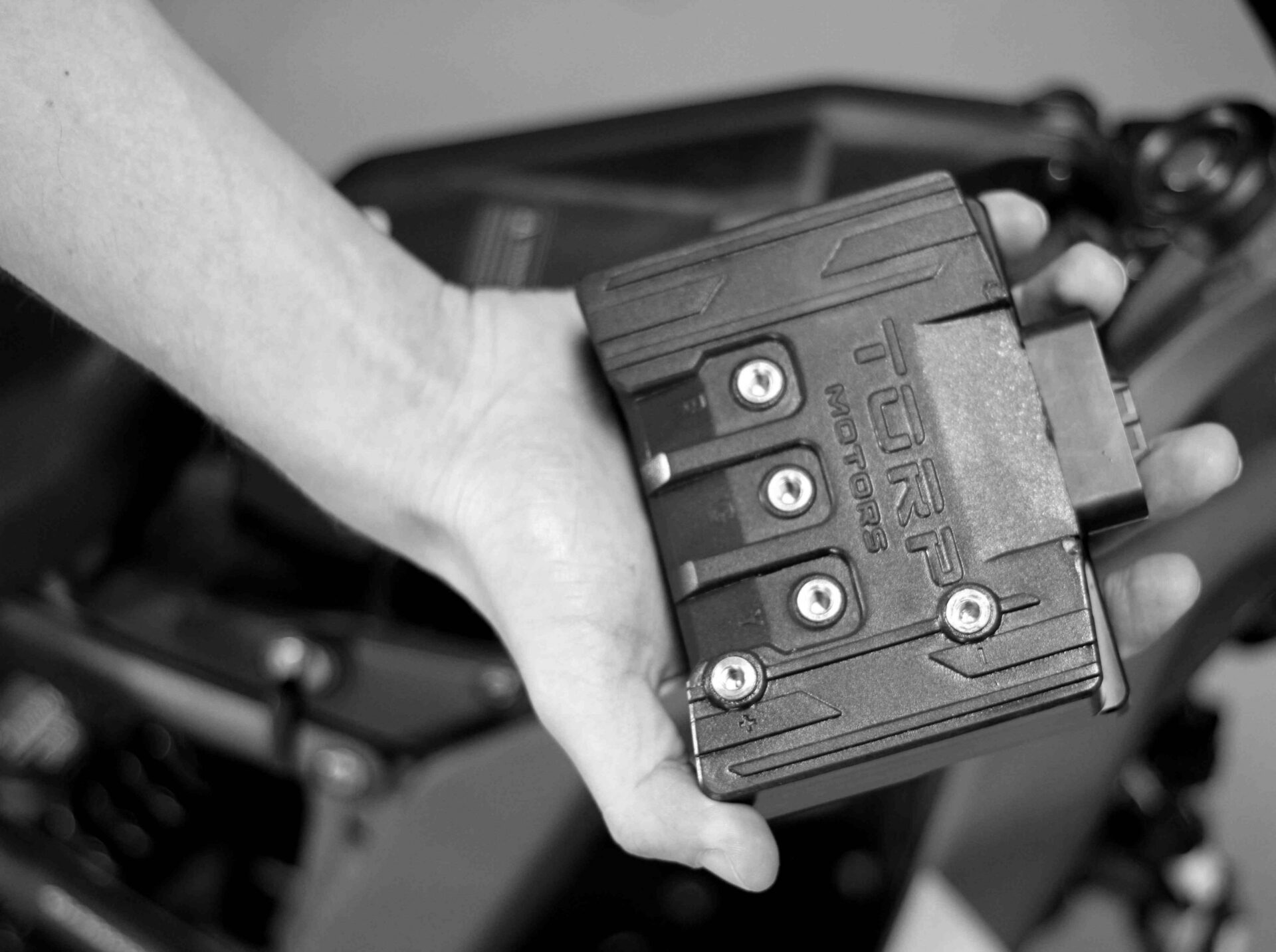

The TORP TC500 controller is made to upgrade your e-bike to an Electric Beast

First developed especially for the Sur-Ron Light Bee and Segway X260 E-Bikes, now also compatible with the new Torp TM25 motor.

FOC technology assures the smooth and predictable power-curve from the beginning to the end of the ride. In combination with the stock SurRon e-motor, the max power is 17 kW. In combination with the TM25 motor the max power is 23 kW!

Plug & Play in the true meaning of words. No previous knowledge of electronics is needed to install. Just follow the installation manual and you are set to go in less than 20 min! We did all the tiresome tuning and configuration for you, so you don’t have to.

Torp TC500 Controller for Talaria  MX3 / MX4:
The max power with the stock battery on Talaria MX4 is 11,5 kW and with MX3 is 8 kW.
Compatible with the stock Talaria and aftermarket (60 V and 72 V) batteries. Easy to install and even easier to adjust according to your preferences using the Torp App!

With Torp Controllers all stock Talaria features will be preserved (stock Talaria Display, kick-stand sensor, crash sensor, power mode button, and brake switch) except for the start button.

Important: If you plan to use the E-watt / Ebmx 72V battery on your Talaria MX3/MX4 with a Torp controller, contact Torp support for installation guidance. Do not install the controller before contacting us to prevent equipment damage!

SPECIFICATIONS:

– Field-oriented control (FOC)
– Voltage 20-90V
– Max Power: 25kW*
– Sensored (HALL Encoder) and sensor less control
– Max Battery Current: 350 A*

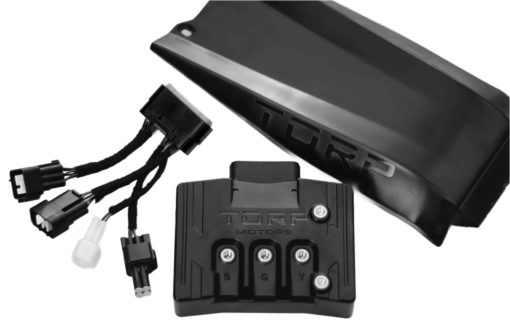

INCLUDED IN THE PACKAGE:

-1x TC500 Controller
-1x wire harness
-1x plastic shield
-screws and tools needed for installation
-4x stickers
-1x pack of silicone grease
-short instructions

*In combination with:

• stock Sur-Ron e-motor, the max power is 17 kW
• the stock Talaria MX4 e-motor, the max power is 18kW
• TM25 motor the max power is 23 kW

– Max phase current: 500 A
– Efficiency up to 99%
– Working temperature: from -15 to 75 C°
– Bluetooth communication
– Pre-calibrated: No additional steps required
– Overcurrent, overvoltage, undervoltage and overtemperature protection
– Communication with stock BMS

– Different regenerative braking and throttle modes
– Weight: 1kg
– Features: Mobile App (IOS & Android), stock Sur-Ron display
– Protection class: IP67*
– Regular firmware updates

A POWER TO EXPECT:

TC500 for SurRon LB
